产品简介

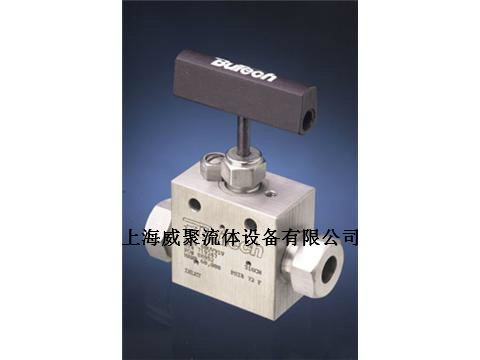

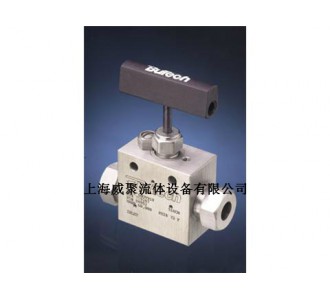

butech阀门技术说明
1.可靠的密封压盖螺母锁定装置，保证阀门在非正常工作下的安全运行。
2.便于架装的安装孔设计，同时提供便于盘装的穿板螺母设计。
3.密封填料函螺母通过支撑垫圈挤压填料，延长填料的寿命。
4.非旋转阀芯设计，防止阀芯与阀座接触时密封面产生擦伤和划痕。
5.填料函被设计在阀体内部，通过密封压盖压紧密封，与其它阀门设计相比减少了泄漏机会。
6.阀门阀体是对整根金属锻件冷加工而成，使阀体金相结构更加紧密，更能满足高温、高压的要求，且安全系数更高。
7.专门设计提供了在现场运行维护中检测外泄漏的结构。
8.阀门的阀杆操作螺纹经滚压成型，与之相配的填料压盖螺母是经特殊热处理的。硬度高、耐磨，且摩擦系数小。填料函及阀芯腔体是经一次加工而成，使阀杆旋转更加灵活，不卡涩。
9.可根据管路管径的尺寸提供阀门两端不同连接方式的管接件，以方便用户




Butech高压阀门型号及参数

额定工作压力 psi(bar）	连接管外径 IN(mm)
		直通	直角	3路/2路承压	3路/1路承压	3路/2路接头	2路直角/可更换阀座	计量	精密计量
15,000 (1034) NPTF	NPT1/8	SFPV21V SFPV21R	SFPV22V SFPV22R	SFPV23V SFPV23R	SFPV24V SFPV24R	SFPV25V SFPV25R	SFPV26V SFPV26R	SFPMV26V	SFPMMV26V
	NPT1/4	SFPV41V SFPV41R	SFPV42V SFPV42R	SFPV43V SFPV43R	SFPV44V SFPV44R	SFPV45V SFPV45R	SFPV46V SFPV46R	SFPMV46V	SFPMMV46V
	NPT3/8	SFPV61V SFPV61R	SFPV62V SPFV62R	SFPV63V SFPV63R	SFPV64V SFPV64R	SFPV65V SFPV65R	SFPV66V SFPV66R	SFPMV66V	SFPMMV66V
	NPT1/2	SFPV81V SFPV81R	SFPV82V SFPV82R	SFPV83V SFPV83R	SFPV84V SFPV84R	SFPV85V SFPV85R	SFPV86V SFPV86R	-	-
	NPT3/4	FPV121V FPV121R	FPV122V FPV122R	FPV123V FPV123R	FPV124V FPV124R	FPV125V PFV125R	FPV126V FPV126R	-	-
	NPT1	FPV161V FPV161R	FPV162V FPV162R	FPV163V FPV163R	FPV164V FPV164R	FPV165V FPV165R	FPV166V FPV166R	-	-
15,000 (1,034)	1/16	SLPV11V SLPV11R	SLPV12V SLPV12R	SLPV13V SLPV13R	SLPV14V SLPV14R	SLPV15V SLPV15R	SLPV16V SLPV16R	SLPMV16V	SLPMMV16V
	1/8	SLPV21V SLPV21R	SLPV22V SLPV22R	SLPV23V SLPV23R	SLPV24V SLPV24R	SLPV25V SLPV25R	SLPV26V SLPV26R	SLPMV26V	SLPMMV26V
	1/4	SLPV41V SLPV41R	SLPV42V SLPV42R	SLPV43V SLPV43R	SLPV44V SLPV44R	SLPV45V SLPV45R	SLPV46V SLPV46R	SLPMV46V	SLPMMV46V
	3/8	SLPV61V SLPV61R	SLPV62V SLPV62R	SLPV63V SLPV63R	SLPV64V SLPV64R	SLPV65V SLPV65R	SLPV66V SLPV66R	SLPMV66V	SLPMMV66V
	1/2	SLPV81V SLPV81R	SLPV82V SLPV82R	SLPV83V SLPV83R	SLPV84V SLPV84R	SLPV85V SLPV85R	SLPV86V SLPV86R	-	-
20,000 (1,380)	1/4	20UV41V 20UV41R	20UV42V 20UV42R	20UV43V 20UV43R	20UV44V 20UV44R	20UV45V 20UV45R	20UV46V 20UV46R	20MV46V	20MMV46V
	3/8	20UV61V 20UV61R	20UV62V 20UV62R	20UV63V 20UV63R	20UV64R 20UV64V	20UV65V 20UV65R	20UV66V 20UV66R	20MV66V	20MMV66V
	9/16	20UV91V 20UV91R	20UV92V 20UV92R	20UV93V 20UV93R	20UV94V 20UV94R	20UV95V 20UV95R	20UV96V 20UV96R	-	-
	3/4	20V121V 20V121R	20V122V 20V122R	20V123V 20V123R	20V124V 20V124R	20V125V 20V125R	20V126V 20V126R	-	-
	1	20V161V 20V161R	20V162V 20V162R	20V163V 20V163R	20V164V 20V164R	20V165V 20V165R	20V166V 20V166R	-	-
30,000 (2,070)	1/4	30UV41V 30UV41R	30UV42V 30UV42R	30UV43V 30UV43R	30UV44V 30UV44R	30UV45V 30UV45R	30UV46V 30UV46R	30MV46V	30MMV44V
	3/8	30UV61V 30UV61R	30UV62V 30UV62R	30UV63V 30UV63R	30UV64V 30UV64R	30UV65V 30UV65R	30UV66V 30UV66R	30MV66V	30MMV64V
	9/16	30UV91V 30UV91R	30UV92V 30UV92R	30UV93V 30UV93R	30UV94V 30UV94R	30UV95V 30UV95R	30UV96V 30UV96R	-	-
	1	30V161V 30V161R	30V162V 30V162R	30V163V 30V163R	30V164V 30V164R	30V165V 30V165R	30V166V 30V166R	-	-
40,000 (2,760)	9/16	40UV91V 40UV91R	40UV92V 40UV92R	40UV93V 40UV93R	40UV94V 40UV94R	40UV95V 40UV95R	40UV96V 40UV96R	-	-
60,000 (4,140)	1/4	60UV41V 60UV41R	60UV42V 60UV42R	60UV43V 60UV43R	60UV44V 60UV44R	60UV45V 60UV45R	60UV46V 60UV46R	60MV46V	60MMV44V
	3/8	60UV61V 60UV61R	60UV62V 60UV62R	60UV63V 60UV63R	60UV64V 60UV64R	60UV65V 60UV65R	60UV66V 60UV66R	60MV66V	60MMV64V
	9/16	60UV91V 60UV91R	60UV92V 60UV92R	60UV93V 60UV93R	60UV94V 60UV94R	60UV95V 60UV95R	60UV96V 60UV96R	-	-
	3/4	60V121V 60V121R	60V122V 60V122R	60V123V 60V123R	60V124V 60V124R	60V125V 60V125R	60V126V 60V126R	-	-
150,000 (10,342)	5/16	150V51V 150V51R	150V52V 150V52R	150V53V 150V53	-	-	-	-	-
