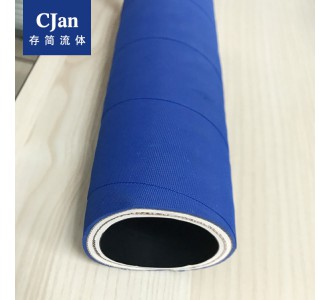

电解液输送软管 防静电化学品吸排软管 UCSD
Applications:
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Construction：
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C～+120 °C (-40 °F +248 °F)
使用范围：
可以满足98%化学品、溶剂和腐蚀性液体的输送，可用来抽取，波纹设计使其更柔软，具备更小的弯曲半径。
软管结构：
内管： 黑色导电UHMWPE（超高分子量聚乙烯）
增强层：多层高强力纤维编织，内置2条螺旋钢丝增强及导电铜丝
外管：黑色或蓝色波纹状EPDM合成橡胶，抗氧化耐磨性佳
温度范围：-40°C～+120°C
|
编码 |
内径 |
外径 |
弯曲半径 |
工作压力 |
包装长度 |
||
|
inch |
mm |
mm |
mm |
psi |
bar |
m |
|
|
UCSD019 |
3/4" |
19.05 |
32.0 |
89 |
200 |
13.8 |
61 |
|
UCSD025 |
1" |
25.4 |
37.3 |
100 |
200 |
13.8 |
61 |
|
UCSD032 |
1-1/4" |
31.8 |
45.0 |
130 |
200 |
13.8 |
61 |
|
UCSD038 |
1-1/2" |
38.1 |
52.0 |
154 |
200 |
13.8 |
61 |
|
UCSD051 |
2" |
50.8 |
66.3 |
208 |
200 |
13.8 |
61 |
|
UCSD063 |
2-1/2" |
63.5 |
76.1 |
252 |
200 |
13.8 |
61 |
|
UCSD076 |
3" |
76.2 |
96.2 |
305 |
200 |
13.8 |
61 |
|
UCSD102 |
4" |
101.6 |
120.6 |
407 |
200 |
13.8 |
61 |
关键词：电解液输送软管 防静电化学品吸排软管 导电软管 锂电池专用管
