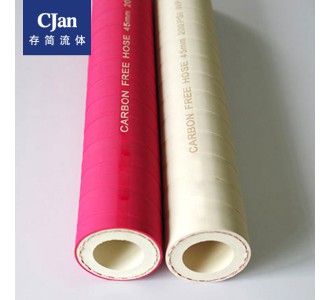

光伏行业还原电炉专用软管 绝缘软管JY15
Applications:
It is suitable for conveying purified water through the cable in the water cooling system of the internal reduction electric furnace with a voltage of 15KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.
Construction:
Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: fabric impression, red or green, pure carbon - free, high - insulation EPDM synthetic rubber.
Shielding layer: Copper mesh braid layer, exterior covering high insulation rubber layer.
Electrical resistance: high insulation, excellent low leakage current. At 15KV DC/AC voltage, the leakage current is less than 20 Micro Amp.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184, CJAN
应用范围：
适用于电压15KV内还原电炉水冷系统穿电缆输送纯净水。纯净无碳，高绝缘，耐磨、抗老
化。
软管结构：
内管：白色，光滑、纯净、无碳、高绝缘的EPDM合成橡胶。
增强层: 高强度聚酯纤维线。
外管：红色，布面，纯净无碳、高绝缘EPDM合成橡胶；其他白色/绿色/蓝色可按客户要求定制。
屏蔽层：铜网编织层，外表覆盖高绝缘橡胶层。
耐电压：
高绝缘，优秀的低泄露电流。在15KV DC/AC电压下，泄露电流小于20 Micro Amp。
适用温度：-40 to 120 ℃。
环保标准：符合欧盟PAHS-2、REACH、ROHS指令。
技术标准：HG/T2184, CJAN
|
编码 |
内径 |
外径 |
弯曲半径 |
工作压力 |
爆破压力 |
重量 |
每卷长度 |
|
|
inch |
mm |
mm |
mm |
PSI |
PSI |
kg/m |
m |
|
|
JY15032 |
1-1/4" |
31.8 |
60 |
260 |
200 |
800 |
3 |
40 |
|
JY15038 |
1-1/2" |
38.1 |
66 |
300 |
200 |
800 |
3.4 |
40 |
|
JY15042 |
42mm |
42 |
70 |
336 |
200 |
800 |
3.5 |
40 |
|
JY15045 |
45mm |
44.5 |
73 |
360 |
200 |
800 |
3.7 |
40 |
|
JY15050 |
2" |
50.8 |
79 |
400 |
200 |
800 |
4.2 |
40 |
关键词：光伏行业软管 还原电炉专用软管 绝缘软管 高绝缘管
