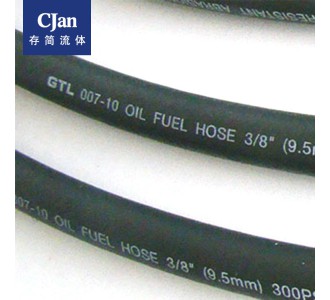

GTL 007 防静电油管
Applications:
High-quality oil-resistant hose is antistatic and explosion-proof, wear-resistant, anti-aging, safe and reliable. It is suitable for transporting gasoline, kerosene, diesel oil, lubricating oil and others.
Technical characteristics:
inner rubber layer is conductive, with specific resistance R<106 ohmm.
Construction:
Tube: Inner rubber layer: Black antistatic and super oil-resistant NBR synthetic rubber;
Reinforcement: High-strength synthetic fiber braided layer;
Cover: Wear-resistant, oil-resistant and anti-aging synthetic rubber.
Temperature range: -30 °C +100 °C
Standard/Approval: ROHS
应用范围：
适用于输送汽油、煤油、柴油、润滑油等石油类产品。防静电型油管，可用于防爆场所输送油类产品。导电内胶层可防止静电电荷的产生，或经导电橡胶层连接的金属接头导入大地。防止危险的发生。
技术特点:
内胶层导电，电阻率R＜106 ohmm，符合美国ASTM防静电设计标准。
软管结构:
内管：黑色RMA-A耐油、防静电NBR合成橡胶。
增强层: 德国产高强度合成纤维编织层。
外管: 耐磨、耐油、抗老化的合成橡胶，光面，黑色。
适用温度: -30 to 100℃。
环保标准：符合欧盟环保标准 ROHS要求。
|
编码 |
内径 |
内径 |
外径 |
弯曲半径 |
工作压力 |
爆破压力 |
每卷长度 |
|
inch |
mm |
mm |
mm |
PSI |
PSI |
m |
|
|
GTL007-005 |
3/16" |
4.8 |
40 |
300 |
1200 |
100 |
|
|
GTL007-006 |
1/4" |
6.4 |
12.8 |
50 |
300 |
1200 |
100 |
|
GTL007-008 |
5/16" |
7.9 |
14.8 |
60 |
300 |
1200 |
100 |
|
GTL007-010 |
3/8" |
9.5 |
16.8 |
70 |
300 |
1200 |
100 |
|
GTL007-013 |
1/2" |
12.7 |
20.5 |
120 |
300 |
1200 |
100 |
|
GTL007-016 |
5/8" |
15.9 |
24 |
150 |
300 |
1200 |
60 |
|
GTL007-019 |
3/4" |
19 |
28 |
170 |
300 |
1200 |
60 |
|
GTL007-022 |
7/8" |
22.2 |
32 |
190 |
300 |
1200 |
60 |
|
GTL007-025 |
1" |
25.4 |
36 |
200 |
200 |
800 |
60 |
|
GTL007-032 |
1-1/4" |
31.8 |
43.8 |
250 |
150 |
600 |
36 |
|
GTL007-038 |
1-1/2" |
38.1 |
51 |
300 |
150 |
600 |
30 |
|
GTL007-051 |
2" |
50.8 |
66 |
400 |
150 |
600 |
20 |
